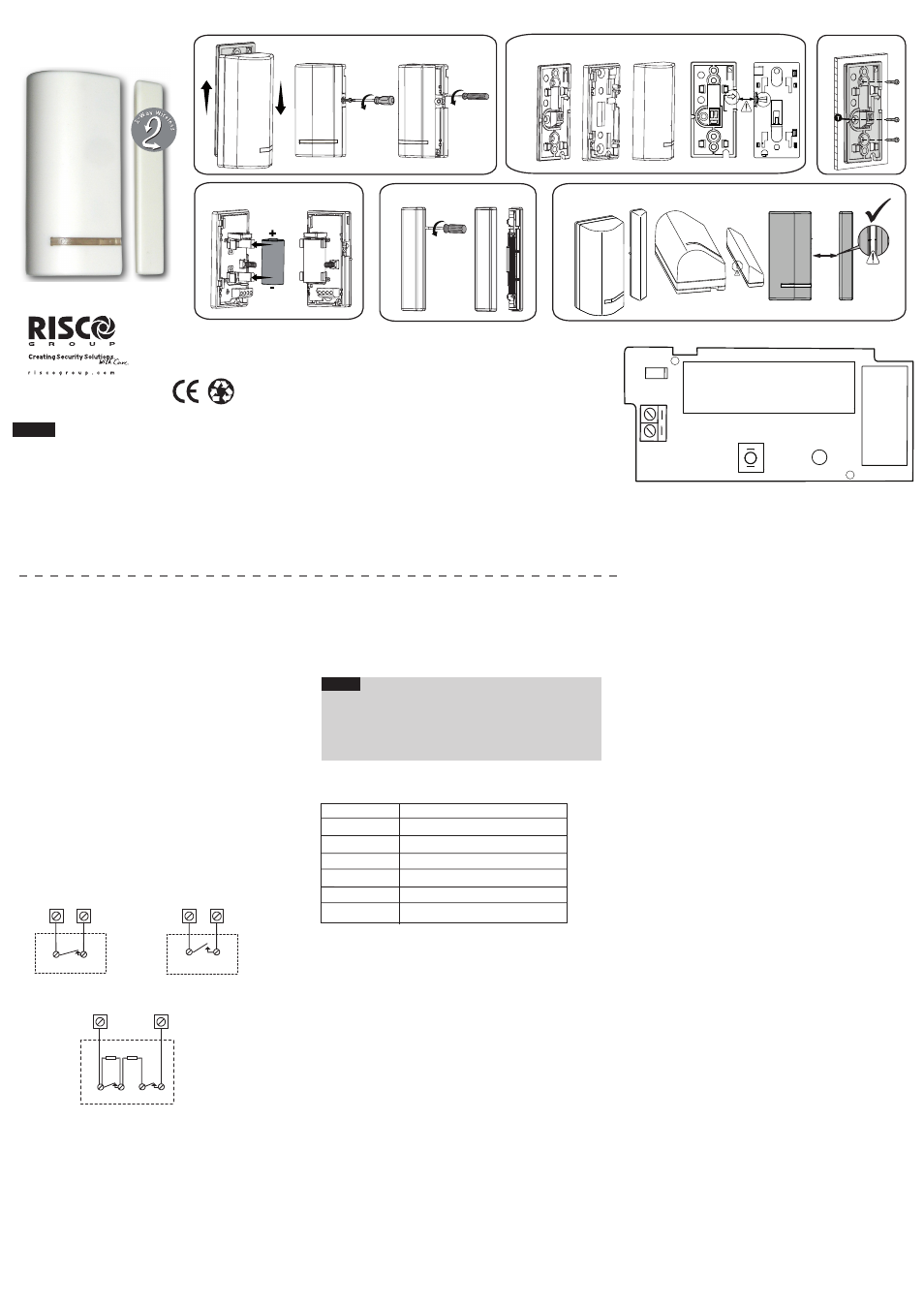

RISCO Group 2-Way RWX73M - Manuel

RTTE Compliance Statement
Hereby, RISCO Group declares that this equipment is in
compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC. For the CE
Declaration of Conformity please refer to our website:
www.riscogroup.com
MAIN FEATURES
The RWX73M is a 2-way supervised transmitter that
combines Magnetic/Door contact against opening doors
and windows with additional universal input.
The RWX73M operates with RISCO Group 2-Way
wireless systems
NORMALLY CLOSED
INPUT CONFIGURATION
NORMALLY OPEN INPUT
CONFIGURATION
Step 2: Input Wiring
Use the following diagrams for appropriate input
termination wiring. For DEOL termination connect
two 10K Ohm resistors (supplied) illustrated as follows:
ALARM
DETECTOR
ALARM
DETECTOR
INSTALLATION
● Communication: Bi-directional
● Range: up to 300 m (1,000 ft.) range line of sight
● Supervision: Up to 255 minutes
● Selective input termination : NO, NC, DEOL
● Selective input response: 10 / 500ms
● Tamper protection: Back + Cover
Step 1: Transmitter Receiver Communication Set Up
The RWX73M must identify itself to the system's receiver
by writing its coded message into the receiver's address
memory.
This registration is performed either by entering the
RWX73M’s 11-digit serial code number or by performing
the following RF allocation steps:
1. Remove the front cover (Fig 1)
2. Set the main unit to Learn Mode.
3. Remove the battery from the insulation material and
reinsert it into the transmitter, paying attention to the
polarity (Fig. 4).
4. Send a write message by pressing both tamper
switches (back and cover) for at least 3 seconds
until panel recognition is displayed.
DOUBLE END OF LINE INPUT CONFIGURATION
10k
ALARM TAMPER
10k
DETECTOR
Step 3: Select The Mounting Location
1. Select a location best suited for communication quality
and near the intended wired detector. RISCO recom-
mends you place the unit at the highest possible position.
2. Temporarily attach the unit to this point using two sided
adhesive tape
3. Generate an Alarm signal (by momentarily opening or
closing the input terminals) and verify that the receiver
has received the signal. If the alarm signal is not
detected, reposition the transmitter and try again.
Step 4: Final Mounting (Figures 1,2 and 3)
1. Separate the back part of the transmitter and mount all
the parts in place (Fig. 2 and 3), including the middle
back tamper mounting screw (T).
2. Mount the magnet (Fig. 5).
Notes:
1. The mark on the magnet's plastic case should be
aligned with the mark on the transmitter's case (Fig. 6).
2. For installations on wood or alloy, the maximum
distance for normal operation is 10mm, while for metal
ferromagnetic materials (iron) it is 5mm.
SW1
LED BATTERY
ANTENNA
+ -
C RISCO
IN1
T.B
Step 5: Parameters
The following parameters can be defined for RWX73M:
Parameter Option
Supervision Yes/No
LED Enable Yes/No
Magnet Enable/Disable
Alarm Hold On/Off
Termination IN1: NO/NC/DEOL
Response 10ms/500ms
TECHNICAL SPECIFICATIONS
ELECTRICAL
Battery Type: CR123 3V Lithium Battery
Current Consumption: 11µA standby
Frequency: RWX73M86800A 868.65 MHz
RWX73M43300A 433.92 MHz
Dead Time (HOLD ON): 2.5 minutes
Supervision Transmission: 0-255 minutes
Modulation Type: ASK
Battery Life: 3 years typical
Contact Size: 32 x 35 x 72 mm (1.3 x 1.4 x 2.8 in.)
Magnet Size: 16 x 11 x 72 mm (0.6 x 0.44 x 2.8 in.)
ENVIRONMENTAL
RF immunity: According to EN50130-4
Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: -20°C to 60°C (-4°F to 140°F)
Specifications are subject to change without prior notice.
Should any questions arise please contact your supplier.
LED INDICATION
● Upon successful learning: short flash sequence
● Normal operation: brief light upon transmission
● Low battery: short flash sequence during transmission
EN 50131-2-6 Grade 2 Environmental Class II
2-Way Wireless
Magnetic/Door Contact
(Model RWX73M)
© RISCO Group 04/2013 5IN1943 C
Operating Mode
The RWX73M reports events from IN1 and from the magnetic reed switch. In normal operation mode alarm is sent when the
input or magnet are triggered. When restored, it transmits a restoral message
RISCO Group Limited Warranty
RISCO Group and its subsidiaries and affiliates ("Seller") warrants its
products to be free from defects in materials and workmanship under
normal use for 24 months from the date of production. Because Seller
does not install or connect the product and because the product may
be used in conjunction with products not manufactured by the Seller,
Seller cannot guarantee the performance of the security system
which uses this product. Seller's obligation and liability under this
warranty is expressly limited to repairing and replacing, at Seller's
option, within a reasonable time after the date of delivery, any product
not meeting the specifications. Seller makes no other warranty,
expressed or implied, and makes no warranty of merchantability or of
fitness for any particular purpose. In no case shall seller be liable for
any consequential or incidental damages for breach of this or any
other warranty, expressed or implied, or upon any other basis of
liability whatsoever.
Seller's obligation under this warranty shall not include any transporta-
tion charges or costs of installation or any liability for direct, indirect,
or consequential damages or delay. Seller does not represent that its
product may not be compromised or circumvented; that the product
will prevent any personal injury or property loss by burglary, robbery,
fire or otherwise; or that the product will in all cases provide adequate
warning or protection.
Seller, in no event shall be liable for any direct or indirect damages or
any other losses occurred due to any type of tampering, whether
intentional or unintentional such as masking, painting or spraying on
the lenses, mirrors or any other part of the detector.
Buyer understands that a properly installed and maintained alarm
may only reduce the risk of burglary, robbery or fire without warning,
but is not insurance or a guaranty that such event will not occur or that
there will be no personal injury or property loss as a result thereof.
Consequently seller shall have no liability for any personal injury,
property damage or loss based on a claim that the product fails to
give warning. However, if seller is held liable, whether directly or
indirectly, for any loss or damage arising under this limited warranty
or otherwise, regardless of cause or origin, seller's maximum liability
shall not exceed the purchase price of the product, which shall be
complete and exclusive remedy against seller.
No employee or representative of Seller is authorized to change this
warranty in any way or grant any other warranty.
WARNING: This product should be tested at least once a week.
CAUTION: risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteriess according to local regulations.
Hahoma 14, Rishon Lezion, ISRAEL
Contacting RISCO Group
UK
Tel: +44-(0)-161-655-5500
E-mail: [email protected]
ITALY Tel: +39-02-66590054
E-mail: [email protected]
SPAIN Tel: +34-91-490-2133
E-mail: [email protected]
FRANCE Tel: +33-164-73-28-50
E-mail: [email protected]
BELGIUM Tel: +32-2522-7622
E-mail: [email protected]
U.S.A Tel: +1-631-719-4400
E-mail: [email protected]
BRAZIL Tel: +55-11-3661-8767
E-mail: [email protected]
CHINA (Hu) Tel: +86-21-52390066
E-mail: [email protected]
CHINA (SZ) Tel: +86-755-82789285
E-mail: [email protected]
POLAND Tel: +48-22-500-28-40
E-mail: [email protected]
ISRAEL Tel: +972-3-963-7777
E-mail: [email protected]
