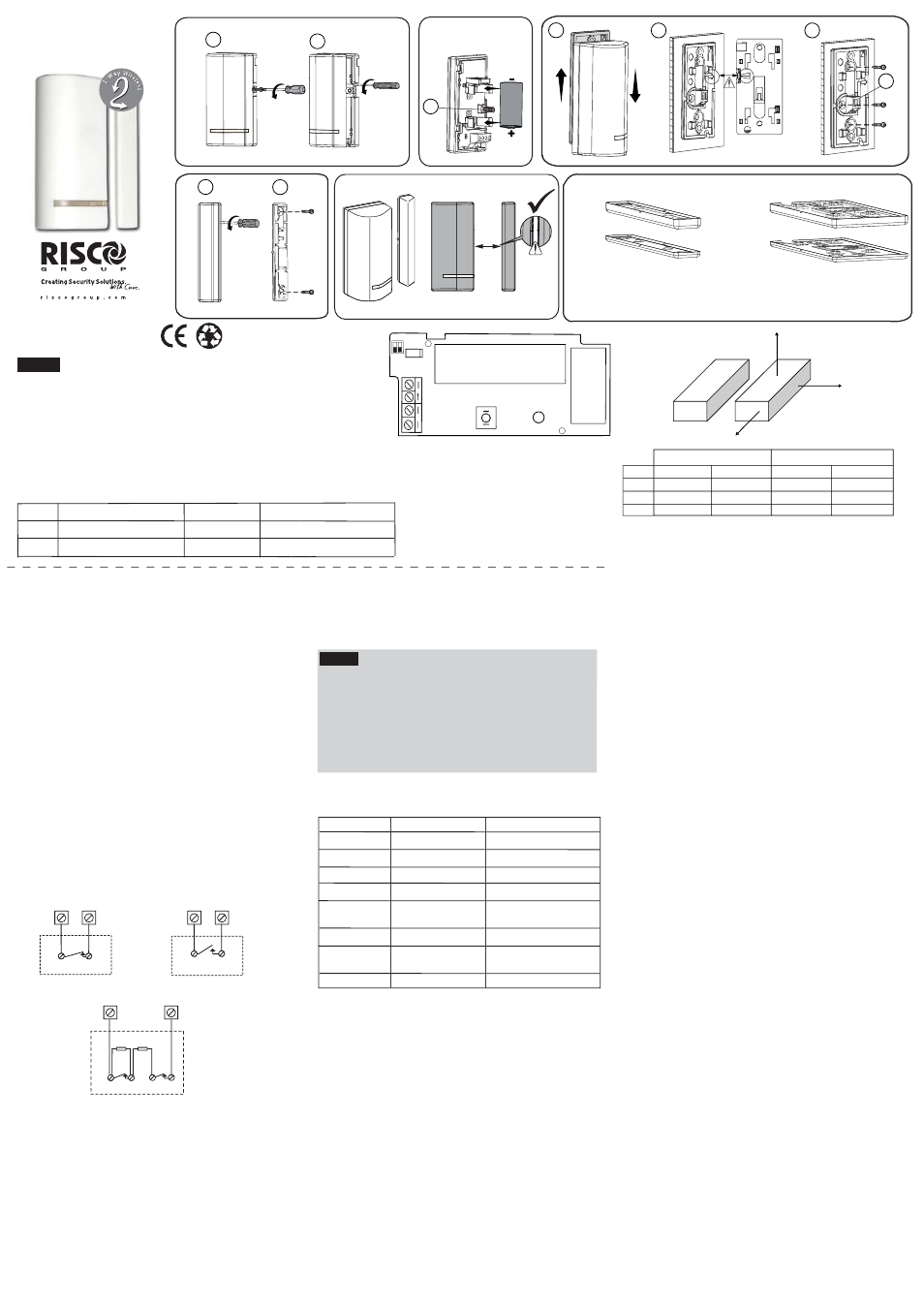

2-Way Wireless

Multi-Function Contact

(Model RWX73F)

EN 50131-2-6 Grade 2 Environmental Class II

Hereby, RISCO Group declares that this equipment is in
compliance with the essential requirements and other

relevant provisions of Directive 1999/5/EC. For the CE
Declaration of Conformity please refer to our website:

www.riscogroup.com

GENERAL DESCRIPTION

The RWX73F is a 2-way multi-function supervised transmitter
with two separate channels that combines Magnetic/Door
contact with two additional inputs (one universal and the other
universal or shutter). The RWX73F has two reed switches for
protection against opening doors and windows, and against any
attempt to tamper with the detector using large magnets. The
RWX73F operates with RISCO Group 2-Way wireless systems.

Ɣ Communication: Bi-directional
Ɣ Range: Up to 300 m (1,000 ft.) range line of sight
Ɣ Supervision: Up to 255 minutes
Ɣ Selective Zone termination : NO, NC, DEOL
Ɣ Selective Zone response: 10 / 500ms
Ɣ Tamper protection: Back + cover
Ɣ Anti-sabotage tamper protection
Ɣ Two channels recognized as separate zones in
the system

Step 2: Input Wiring

Use the following diagrams for appropriate input
termination wiring. For DEOL termination connect two
10K Ohm resistors (supplied) as per the following illustrations:

INSTALLATION

MAIN FEATURES

Step 1: Transmitter Receiver Communication Setup
The X73F must identify itself to the system's receiver by
writing its coded message into the receiver's address
memory. The receiver must identify each channel
separately, as de

¿ned by DIP switch 1.

This registration for each channel is performed either
by entering the RWX73F’s 11-digit serial code number
or by performing the following RF allocation steps:
1. Remove the front cover (Fig 1)
2. Set the main unit to Learn mode.
3. Remove the battery from the insulation material and
reinsert it into the transmitter, paying attention to the

polarity (Fig. 2).
4. For channel 1 set Dip switch 1 to OFF.
5. Send a write message by pressing the front tamper
switch (without detaching the back bracket) for at least 3
seconds until panel recognition is displayed (Fig. 2).
6. For channel 2, repeat steps 4 and 5 with DIP switch 1
in the ON position.

Step 3: Selecting the Mounting Location
1. Select a location best suited for communication quality
and near the intended wired detector. RISCO recommends
placing the unit at the highest possible position.
2. Temporarily attach the unit to this point using two-sided
adhesive tape.
3. Generate an alarm signal (by momentarily opening or
closing the input terminals) and verify that the receiver
has received the signal. If the alarm signal is not detected,
reposition the transmitter and try again.

TECHNICAL SPECIFICATIONS

ELECTRICAL
Battery Type:

CR123 3V Lithium Battery

Current Consumption: 22

—A standby

Frequency: RWX73F86800A 868.65 MHz
RWX73F43300A 433.92 MHz

Dead Time (HOLD ON): 2.5 minutes
Supervision Transmission: 0-255 minutes
Modulation Type:

ASK

Battery Life:

3 years typical

Contact Size: 32 x 35 x 72 mm (1.3 x 1.4 x 2.8 in.)
Magnet Size: 16 x 11 x 72 mm (0.6 x 0.44 x 2.8 in.)

ENVIRONMENTAL
RF immunity:

According to EN50130-4

Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: -20°C to 60°C (-4°F to 140°F)
Speci

¿cations are subject to change without prior notice.

Should any questions arise please contact your supplier.

RTTE Compliance Statement

© RISCO Group 06/2014

5IN1841 D

RISCO Group Limited Warranty

RISCO Group and its subsidiaries and af

¿liates ("Seller") warrants its

products to be free from defects in materials and workmanship under
normal use for 24 months from the date of production. Because Seller
does not install or connect the product and because the product may be
used in conjunction with products not manufactured by the Seller, Seller
cannot guarantee the performance of the security system which uses
this product. Seller's obligation and liability under this warranty is
expressly limited to repairing and replacing, at Seller's option, within a
reasonable time after the date of delivery, any product not meeting the
speci

¿cations. Seller makes no other warranty, expressed or implied,

and makes no warranty of merchantability or of

¿tness for any particular

purpose. In no case shall seller be liable for any consequential or
incidental damages for breach of this or any other warranty, expressed
or implied, or upon any other basis of liability whatsoever.
Seller's obligation under this warranty shall not include any transporta-
tion charges or costs of installation or any liability for direct, indirect, or
consequential damages or delay. Seller does not represent that its
product may not be compromised or circumvented; that the product will
prevent any personal injury or property loss by burglary, robbery,

¿re or

otherwise; or that the product will in all cases provide adequate warning
or protection.
Seller, in no event shall be liable for any direct or indirect damages or
any other losses occurred due to any type of tampering, whether
intentional or unintentional such as masking, painting or spraying on the
lenses, mirrors or any other part of the detector.
Buyer understands that a properly installed and maintained alarm may
only reduce the risk of burglary, robbery or

¿re without warning, but is

not insurance or a guaranty that such event will not occur or that there
will be no personal injury or property loss as a result thereof.
Consequently seller shall have no liability for any personal injury,
property damage or loss based on a claim that the product fails to give
warning. However, if seller is held liable, whether directly or indirectly,
for any loss or damage arising under this limited warranty or otherwise,
regardless of cause or origin, seller's maximum liability shall not exceed
the purchase price of the product, which shall be complete and
exclusive remedy against seller.
No employee or representative of Seller is authorized to change this
warranty in any way or grant any other warranty.

WARNING: This product should be tested at least once a week.

CAUTION: risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteriess according to local regulations.

Step 5: De

¿ning Parameters

The following parameters can be de

¿ned for each

channel from the control panel:

English

Channel Report Events From Functionality Restore Message

1 Magnetic Contact + Input 1 (IN1) Universal

Follow Event Restore

2 Input 2 (IN2) Universal / Shutter Follow Event Restore / Immediate

OPERATING CHANNELS

The RWX73F supports 2 separate channels with a unique serial number for each channel.

NORMALLY OPEN INPUT

CONFIGURATION

ALARM

DETECTOR

NORMALLY CLOSED

INPUT CONFIGURATION

ALARM

DETECTOR

DOUBLE END OF LINE INPUT CONFIGURATION

10k

ALARM

TAMPER

10k

DETECTOR

Hahoma 14, Rishon Lezion, ISRAEL

Contacting RISCO Group
UK

Tel: +44-(0)-161-655-5500

E-mail: [email protected]

ITALY

Tel: +39-02-66590054

E-mail: [email protected]

SPAIN

Tel: +34-91-490-2133

E-mail: [email protected]

FRANCE

Tel: +33-164-73-28-50

E-mail: [email protected]

BELGIUM

Tel: +32-2522-7622

E-mail: [email protected]

U.S.A

Tel: +1-631-719-4400

E-mail: [email protected]

BRAZIL

Tel: +55-11-3661-8767

E-mail: [email protected]

CHINA

(Hu) Tel: +86-21-52390066

E-mail: [email protected]

CHINA

(SZ) Tel: +86-755-82789285

E-mail: [email protected]

POLAND

Tel: +48-22-500-28-40

E-mail: [email protected]

ISRAEL

Tel: +972-3-963-7777

E-mail: [email protected]

AUSTRALIA

Tel: +1800-991-542

E-mail: [email protected]

Parameter Channel 1

Channel 2

Supervision Yes/No

Yes/No

LED Enable Yes/No

Yes/No

Magnet

Enable/Disable

-

Alarm Hold On/Off On/Off

Termination IN 1: IN 2:
NO/NC/DEOL

NO/NC/DEOL/Shutter

Response 10ms / 500ms

10ms / 500ms

Anti sabotage Enable/Disable

-

magnet

Shutter Pulse

-

01-16*

* Channel 2 termination de

¿ned as Shutter

LED INDICATION

Ɣ Upon successful learning: short Àash sequence
Ɣ Normal operation: brief light upon transmission
Ɣ Low battery: short Àash sequence during transmission

Step 4: Mounting (Fig. 3 -- Fig. 6)
1. Detach the back of the transmitter from the back bracket
(Fig. 3A). At mounting location note the alignment marks
for both components (Fig. 3B), and then install accordingly
using 2 mounting screws and back tamper screw (Fig 3C).

3. Optionally, mount spacer(s) for transmitter and/or magnet
as required (Fig. 6), positioned between the back bracket

Notes:

3. The mark on the magnet's case must be aligned with
the mark on the transmitter's case (Fig. 5).

4. For installations on wood or alloy, the maximum distance
for normal operation is 10 mm (1 cm), while for metal
ferromagnetic materials (such as iron) it is 5 mm (Fig. 5).

2. Spacers are purchased separately (see table above).

1. It’s best to mount the transmitter on the non-moving part
(door/window frame), and the magnet on the moving part.

and the mounting surface.

2. Detach magnet casing (Fig. 4A) and install with mounting

screws (Fig 4B).

Max.
1cm

Figure 1

T

B

A

Figure 3

A

Back bracket

Back side of
transmitter

B

Figure 2

T

C

Figure 4

Figure 5

A

B

ON

1 2

SW

SW1

LED

BATTERY

ANTENNA

+

-

C RISCO

IN2

IN1

T.B

NOTE: Wait at least 1 minute before closing the front cover.

Figure 6

Magnet spacers (10-piece sets):

Transmitter spacers (10-piece sets):

p/n: RAX73MS0000A (white)

p/n: RAX73MSB000A (brown)

p/n: RAX73XS0000A (white)

p/n: RAX73XSB000A (brown)

5 X 4mm

5 X 2mm

5 X 4mm

5 X 2mm

[Optional] [Optional]

Opening

Closing Opening

Closing

Wood

Sweet Iron

X 50mm

44mm

23mm

21mm

Y 85mm

75mm

55mm

45mm

Z 27mm

25mm

23mm

18mm

The tolerance of the measurements is +/- 20%

Contact Magnet

Z

X

Y
