Kichler 43454 - Manuel

1) Screw center stem onto top of fixture body.
2) Thread loop onto threaded pipe on top of center stem
3) Pass hole in bottom of side scroll over threaded stud on top
of arm.
4) Thread ball knob onto threaded stud.
5) Align hole in top of scroll with hole in side of center stem.
6) Thread ball stud into hole in scroll and into hole in center
stem.
7) Tighten ball knob and ball stud to secure side scroll in place.
8) Pass hole in bottom scroll over threaded stud on bottom of
arm.
9) Thread ball knob onto threaded stud. Tighten ball knob to
secure bottom scroll in place.
10) TURN OFF POWER.
IMPORTANT: Before you start, NEVER attempt any work
without shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your
home. Place the main power switch in the “OFF”
position.
b) Unscrew the fuse(s), or switch “OFF” the circuit breaker
switch(s), that control the power to the fixture or room
that you are working on.
c) Place the wall switch in the “OFF” position. If the fixture
to be replaced has a switch or pull chain, place those in
the “OFF” position.
11) Take threaded pipe from parts bag and screw in screw collar
loop a minimum of 6 mm (1/4”). Lock into place with hexnut.
12) Run another hexnut down threaded pipe almost touching
first hexnut. Now screw threaded pipe into mounting strap.
Mounting strap must be positioned with extruded thread
faced into outlet box. Threaded pipe must protrude out the
back of mounting strap. Screw third hexnut onto end of
threaded pipe protruding from back of mounting strap.
13) Connect mounting strap to outlet box.
14) Unscrew the threaded ring from screw collar loop. Take
canopy and pass over screw collar loop. Approximately one
half of the screw collar loop exterior threads should be
exposed. Adjust screw collar loop by turning assembly up or
down in mounting strap. Remove canopy.
15) After desired position is found, tighten both top and bottom
hexnuts up against the bottom and top of the mounting
strap.
16) Slip canopy over screw collar loop and thread on threaded
ring. Attach chain (with fixture connected) to bottom of
screw collar loop. Unscrew threaded ring, let canopy and
threaded ring slip down.
17) Weave electrical wire and ground wire through chain links no
more than 3 inches apart. Pass wire through threaded ring,
canopy, screw collar loop, threaded pipe and into outlet box.
18) Connect fixture ground wire to outlet box ground wire with
wire connector. (Not provided.) Never connect ground wire
to black or white power supply wire.
19) Make wire connections (connectors not provided). Reference
chart below for correct connections and wire accordingly.
20) Raise canopy to ceiling.
21) Secure canopy in place by tightening threaded ring onto
screw collar loop.
Date Issued: 7/12/13 IS-43454-CB
Connect Black or
Red Supply Wire to:
Connect
White Supply Wire to:
Black White
*Parallel cord (round & smooth) *Parallel cord (square & ridged)
Clear, Brown, Gold or Black
without tracer
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with copper conductor
Insulated wire (other than green)
with silver conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
Neutral Wire
INSTRUCTIONS
For Assembling and Installing Fixtures in Canada
Pour L’assemblage et L’installation Au Canada
SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-
LATIONS.
VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRA-
DUCTIONS EN FRANÇAIS.

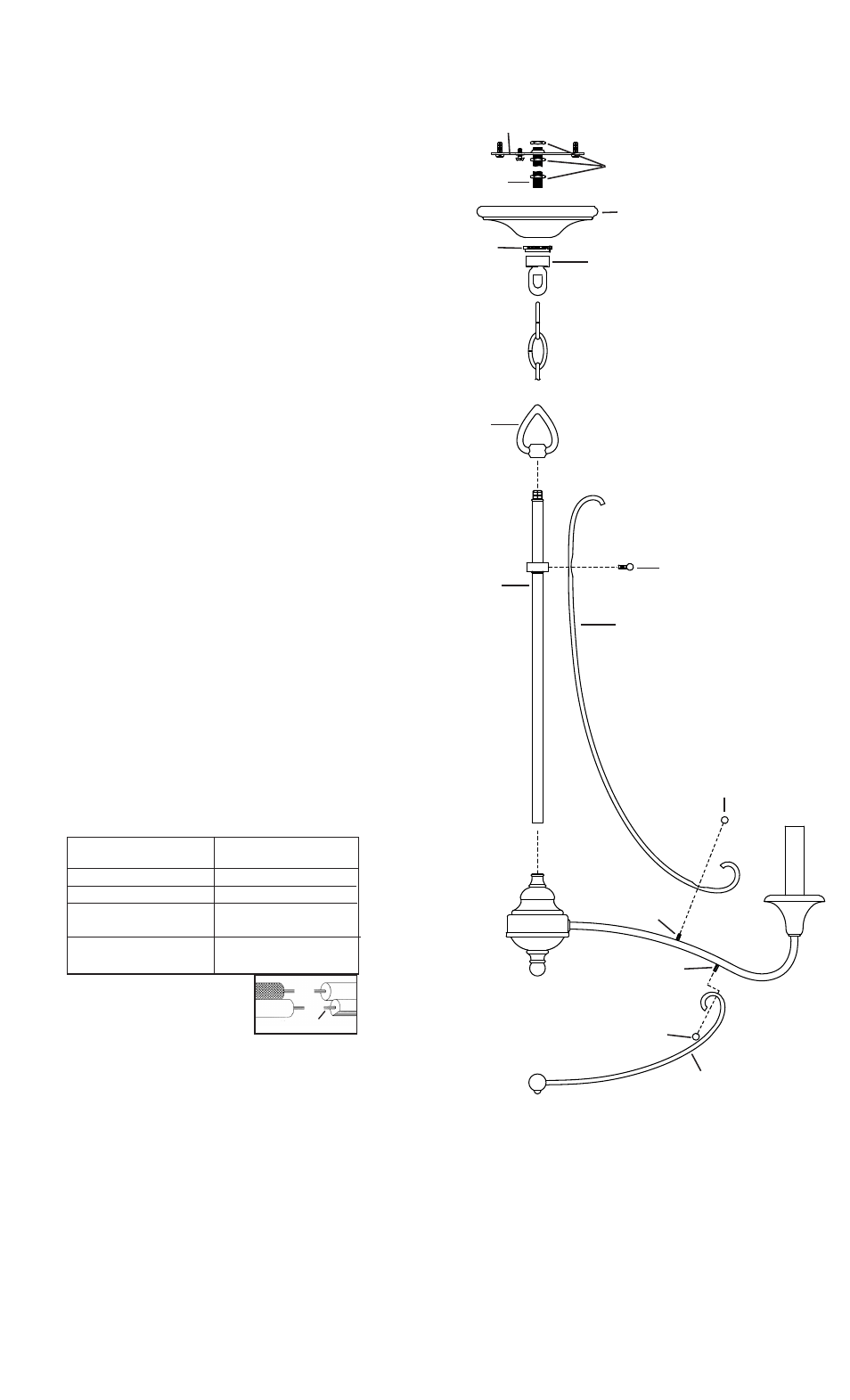

MOUNTING STRAP
PATTE DE FIXATION
HEXNUT
ECROU HEXAGONAL
THREADED PIPE
TUBE FILETÉ
SCREW COLLAR LOOP
COLLIER-ÉCROU
CANOPY
CACHE
THREADED RING
BAGUE FILETÉE
LOOP
BOUCLE
BALL STUD
GOUJON À BILLE
CENTER STEM
TIGE CENTTRALE
BALL KNOB
BOULE À BILLE
SIDE SCROLL
SPIRALE LATÉRALE
BOTTOM SCROLL
SPIRALE INFÉRIEURE
THREADED STUD
GOUJON FILETÉ
THREADED STUD
GOUJON FILETÉ
BALL KNOB
BOULE À BILLE
