1) Remove finials at top of fixture body.
2) Insert washer below metal washer on fixture body.
3) From hole in bottom of glass, place fixture body inside glass.
4) Slip fixture wires from top of fixture body through hole in top

of glass. Slip end of fixture body through hole in top of glass.

5) Replace finials in fixture body.
6) Lower glass down over fixture body. Allow top of glass to

rest on finials.

7) Lower cap down and allow cup to set on top of glass.
8) Slip cap down over end of fixture body protruding from top

of glass. Set cap on top of glass.

9) Pass fixture wire through stem and thread end of stem top

of fixture body.

10) Pass fixture wire through remaining stems and screw stems
together.

NOTE: Thread locking compound must be applied to all

stem threads as noted with symbol (3) to prevent accidental

rotation of fixture during cleaning, relamping, etc.

11) Thread swivel onto end of last stem.

NOTE direction of swivel in accordance with ceiling.

12) Pass threaded pipe on end of swivel up through hole in
canopy.
13) Slip lockwasher over end of threaded pipe protruding from

inside canopy. Thread hexnut onto threaded pipe. Tighten

hexnut to secure swivel to canopy.

14) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room that

you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

15) Find the appropriate threaded holes on mounting strap.

Assemble mounting screws into threaded holes.

16) Attach mounting strap to outlet box. (Screws not provided).

Mounting strap can be adjusted to suit position of fixture.

17) Make wire connections (connectors not provided.) Reference

chart below for correct connections and wire accordingly.

18) Push fixture to ceiling, carefully passing mounting screws

through holes in canopy.

19) Thread knurl knobs onto ends of mounting scrwes. Tighten

knurl knobs to secure fixture to ceiling.

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

Date Issued: 8/30/13

IS-42456-CB

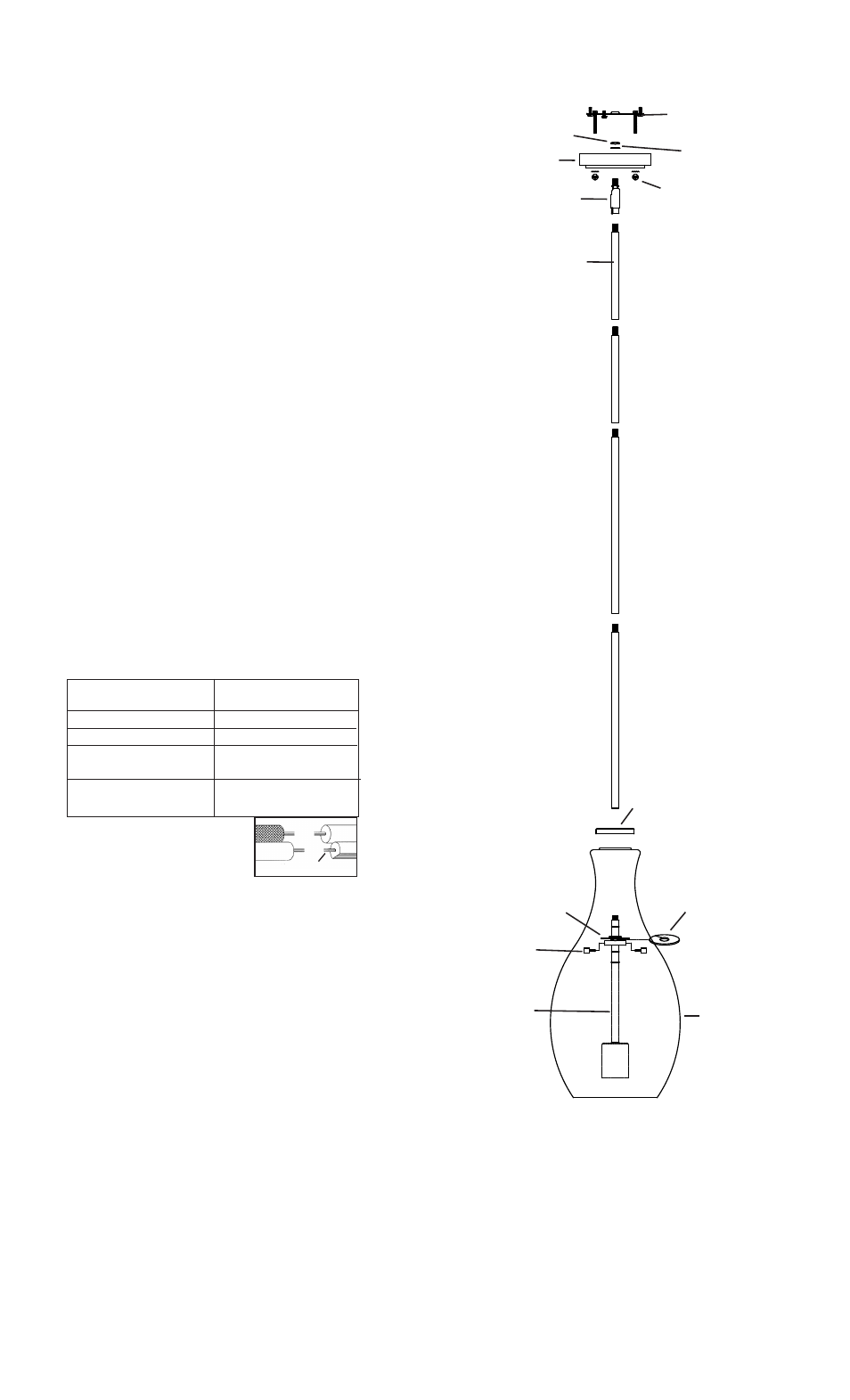

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada

MOUNTING STRAP

PATTE DE FIXATION

CANOPY

CACHE

STEM

TIGE

KNURL KNOB

BOUTON MOLETÉ

SWIVEL

ROTULE

FIXTURE BODY

LUMINAIRE

FINIAL

ORNEMENT

GLASS

VIDRIO

HEXNUT

ECROU HEXAGONAL

LOCKWASHER

RONDELLE DE BLOCAGE

3

CAP

CAPUCHON

METAL WASHER

RONDELLE DE MÉTAL

WASHER

RONDELLE

SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-

LATIONS.

VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRA-

DUCTIONS EN FRANÇAIS.
