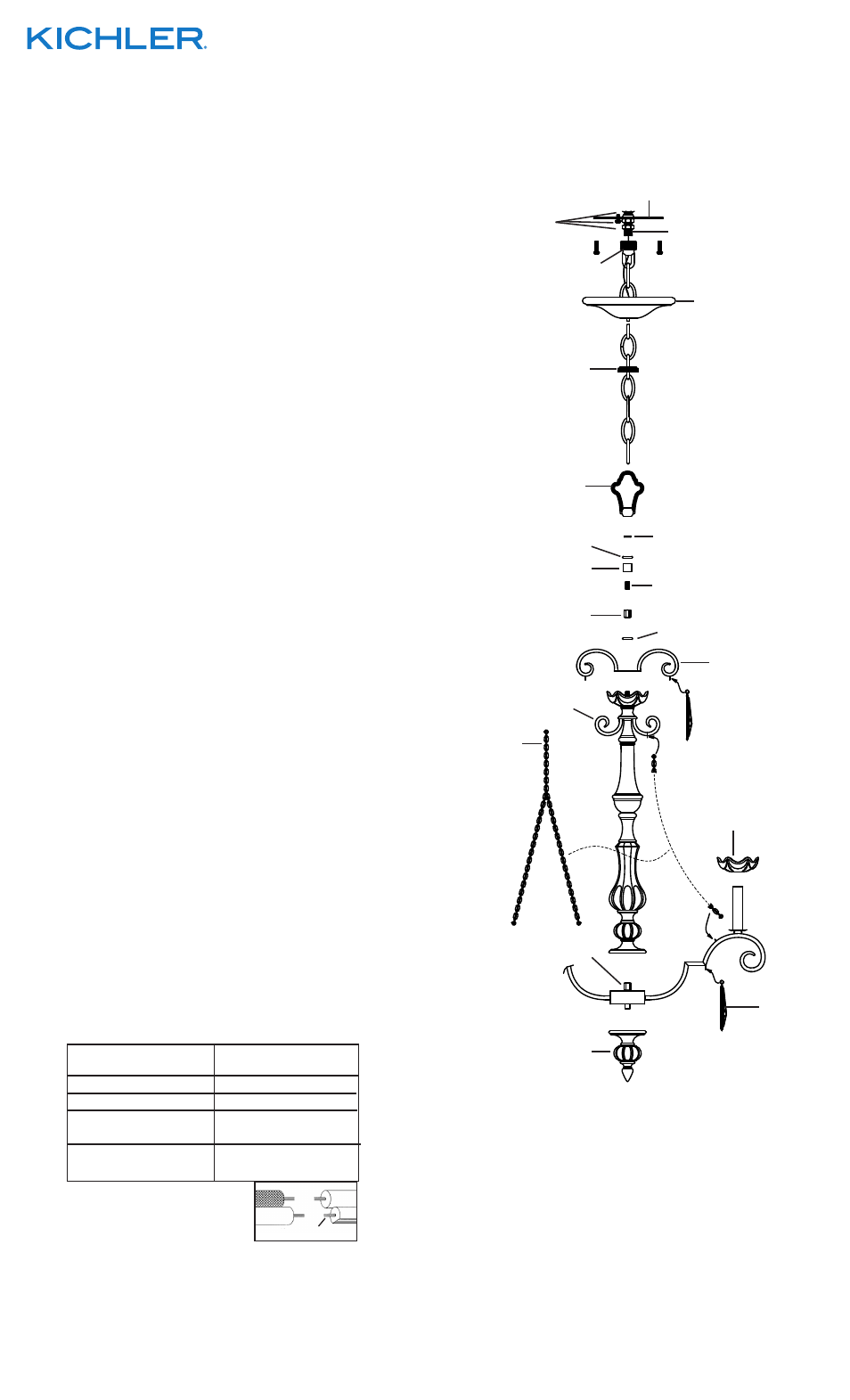

1) Pass fixture wire from fixture body through center column.

Screw center column onto coupling on top of fixture body.

2) Pass fixture wire from top of center column through hole in

center of scroll. Pass hole in center of scroll over end of

threaded pipe on top of center column. Set scroll on top of

center column.

3) Pass fixture wire through hole in check ring. Pass hole in

check ring over end of threaded pipe protruding from center

of scroll.

4) Pass fixture wire through hole in hex coupling. Thread hex

coupling onto threaded pipe.

5) Pass fixture wire through small threaded pipe. Screw end of

small threaded pipe into hole in hex coupling.

6) Pass fixture wire through small tube. Lower small tube over

end of small threaded pipe.

7) Pass fixture wire through hole in check ring. Set check ring

down on top of small tube.

8) Pass fixture wire through hole in lockwasher. Thread

lockwasher onto end of threaded pipe protruding from

check ring.

9) Pass fixture wire through hole in bottom of loop. Screw loop

onto threaded pipe.

10) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

11) Take threaded pipe from parts bag and screw in screw collar

loop a minimum of 6 mm (1/4”). Lock into place with hexnut.

12) Run another hexnut down threaded pipe almost touching

first hexnut. Now screw threaded pipe into mounting strap.

Mounting strap must be positioned with extruded thread

faced into outlet box. Threaded pipe must protrude out the

back of mounting strap. Screw third hexnut onto end of

threaded pipe protruding from back of mounting strap.

13) Connect mounting strap to outlet box.
14) Unscrew the threaded ring from screw collar loop. Take

canopy and pass over screw collar loop. Approximately one

half of the screw collar loop exterior threads should be

exposed. Adjust screw collar loop by turning assembly up or

down in mounting strap. Remove canopy.

15) After desired position is found, tighten both top and bottom

hexnuts up against the bottom and top of the mounting

strap.
16) Slip canopy over screw collar loop and thread on threaded

ring. Attach chain (with fixture connected) to bottom of

screw collar loop. Unscrew threaded ring, let canopy and

threaded ring slip down.

17) Weave electrical wire and ground wire through chain links no

more than 3 inches apart. Pass wire through threaded ring,

canopy, screw collar loop, threaded pipe and into outlet box.

18) Connect fixture ground wire to outlet box ground wire with

wire connector. (Not provided.) Never connect ground wire

to black or white power supply wire.

19) Make wire connections (connectors not provided). Reference

chart below for correct connections and wire accordingly.

20) Raise canopy to ceiling.
21) Secure canopy in place by tightening threaded ring onto

screw collar loop.

22) Screw finial onto threaded pipe on bottom of fixture.
23) Place bobeches over candle covers.
24) Attach bead strands to scrolls at top of fixture and arms.
25) Attach crystals to bottom of arms.

Date Issued: 6/18/10

IS-

42116

-CB

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-

LATIONS.

VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRA-

DUCTIONS EN FRANÇAIS.

We’re here to help

866-558-5706

Hrs: M-F 9am to 5pm EST

KICHLER

MOUNTING STRAP

PATTE DE FIXATION

HEXNUT

ECROU HEXAGONAL

THREADED PIPE

TUBE FILETÉ

SCREW COLLAR LOOP

COLLIER-ÉCROU

CANOPY

CACHE

THREADED RING

BAGUE FILETÉE

LOOP

ANNEAU

CENTER COLUMN

COLONNE CENTRAL

COUPLING

ACCOUPLEMENT

BOBECHE

BOBÈCHE

BEAD STRAND

MANCHON

CRYSTAL

CRISTAL

FINIAL

CAPUCHÓN

LOCKWASHER

ANILLO DE SEGURIDAD

SCROLL

VOLUTE

CHECK RING

BAGUE DE RETENUE

CHECK RING

BAGUE DE RETENUE

HEX COUPLING

ACCOUPLEMENT

HEXAGONAL

SMALL THREADED PIPE

PETIT TUBE FILETÉ

SMALL TUBE

PETIT TUBE

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada
