b. Repeat step a to turn each of the graphs listed on the Graph Mode screen on or off.

6. Select the graph style you want to use.

a. On the Graph Mode screen, use the

f and c cursor keys to move the highlighting to

the graph (Gph1, Gph2, etc.) whose style you want to specify, and then press

4(STYL).

This will cause the function menu to change as shown below.

10-3

Using the Graph Analysis Tools to Graph Data

4. Specify the sampled data for graphing.

a. Use the

f and c cursor keys to move the highlighting to the name of the sampled

data file you want to select, and then press

1(ASGN) or w.

• This returns to the Graph Mode screen, which shows the name of the sample data file

you selected.

b. Repeat step a above to specify sample data files for other graphs, if there are any.

• If you select “Graph Analysis” as the analysis mode in step 2, you must specify sample

data files for three graphs. If you select “Compare Graph” as the analysis mode in step
2, you must specify sample data files for two graphs. With other modes, you need to
specify only one sample data file.

• For details about Sampling Data List screen operations, see “9 Using Sample Data Memory”.

5. Turn on graphing for each of the graphs listed on the Graph Mode screen.

a. On the Graph Mode screen, use the

f and c cursor keys to select a graph, and then

press

1(SEL) to toggle graphing on or off.

Graphing turned off.

Graphing turned on.

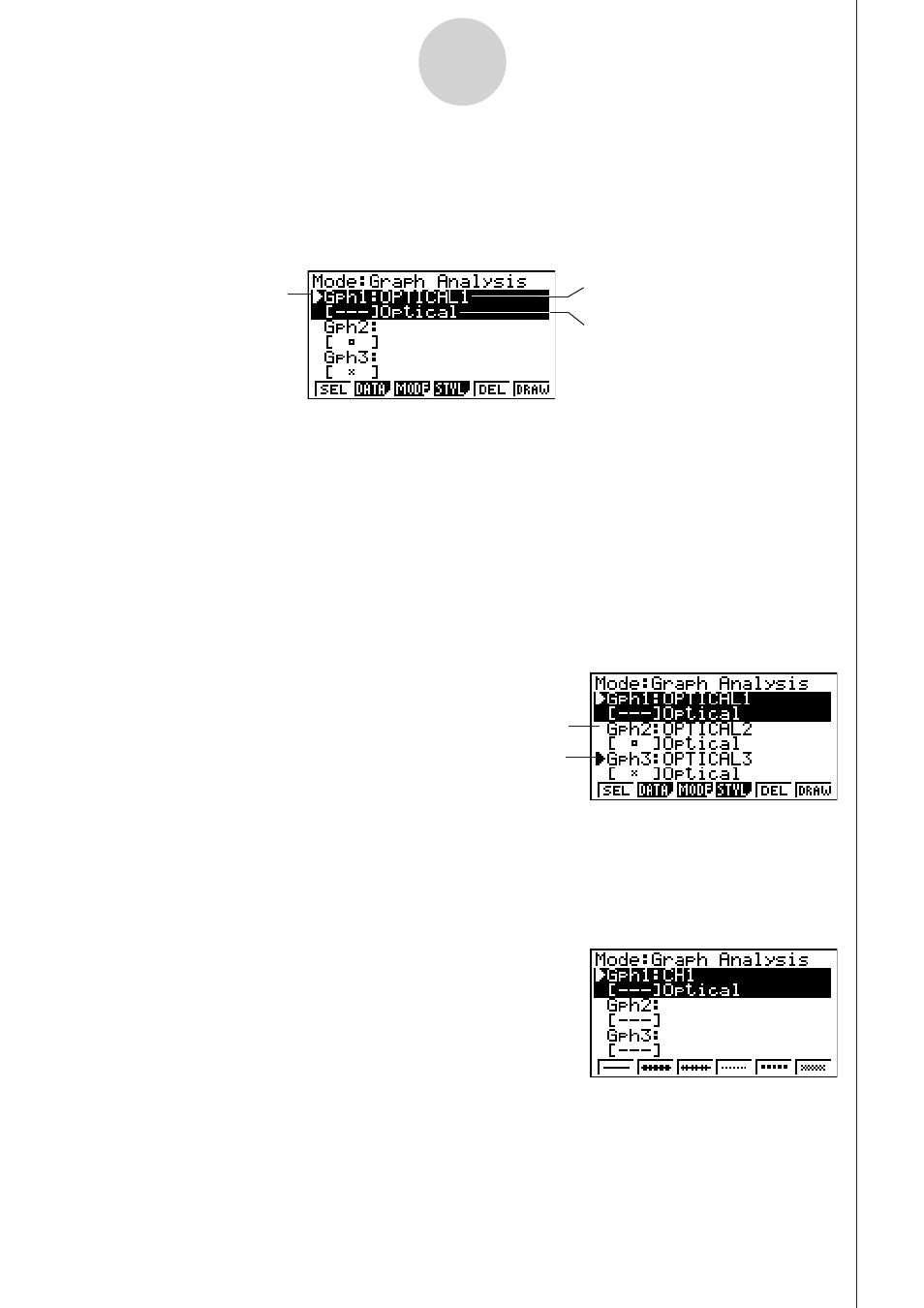

Graph Mode Screen

Graph on/off indicator

Sample data file name

Name of sensor used for sampling
