Guide for installation and use
Infrared Room Thermostat CONTROL BOX

Presentation

This infrared room thermostat has been

designed to bring you comfort and energy

savings. It is for the remote control of your

appliance.

You can regulate the room temperature as

you desire [regulation temperature].

Its BOOST function will enable you to

heat up your room quickly and/or dry your

towels.

Infrared receiver

1

2
3

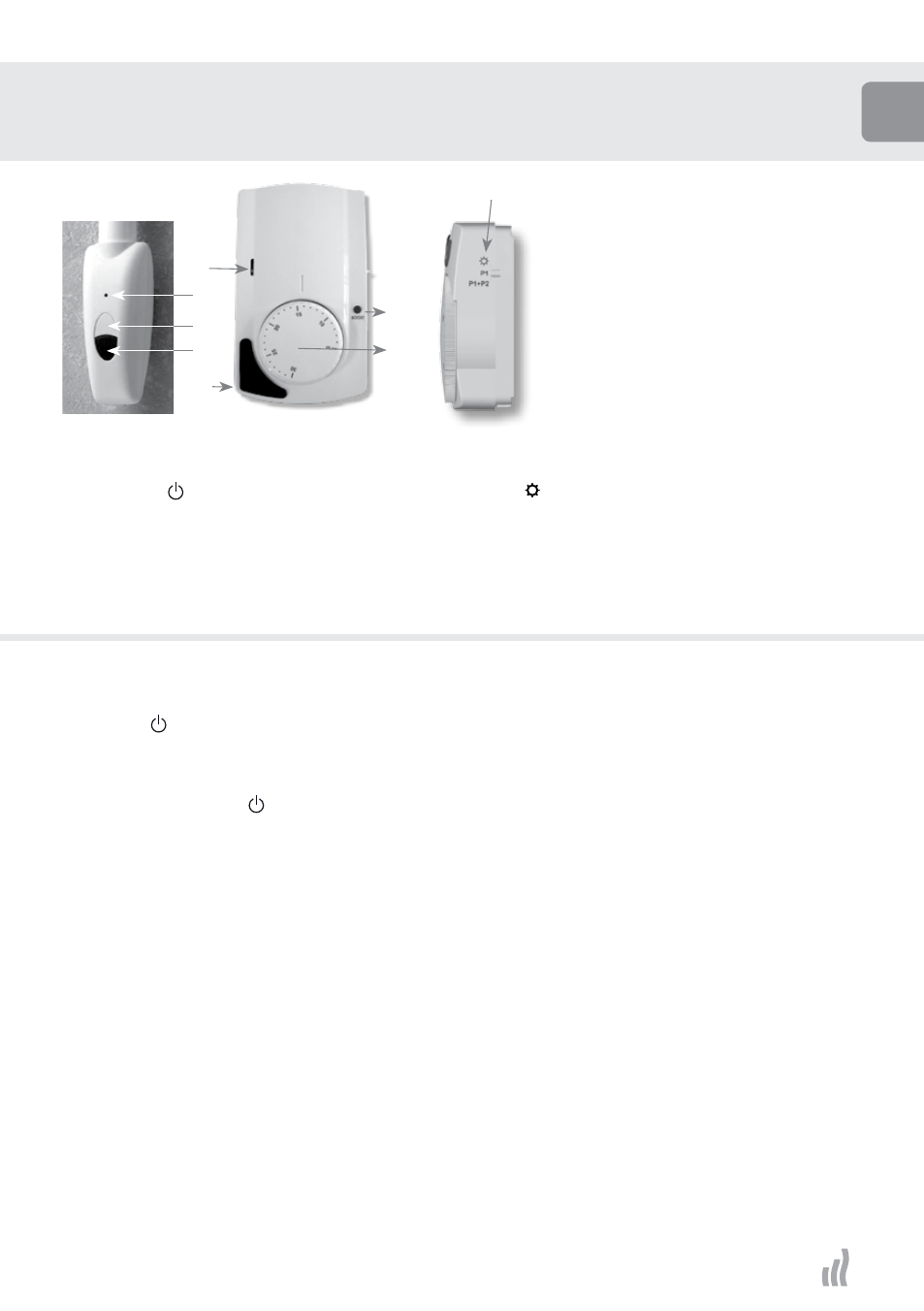

Infrared Room Thermostat

1. Appliance on/off light.

2. Appliance on/standby button.

3. Infrared receiver.

4. Infrared emitter.

5. Thermostat on/off light.

6. OK/Boost button: Manual Boost cycle launch

and Daily Boost cycles P1 and P2 save button.

7. Regulation temperature adjustment dials.

8. 3 position cursor:

• comfort mode: regulation according to room

temperature.

• P1: regulation in comfort mode + repetition of

the 1st Boost 2h programmed time slot.

• P1+P2: regulation in comfort mode + daily

repetition of the two Boost 2h programmed

time slots.

STaRTiNG uP ThE dEviCE

After having plugged your device into the mains:
• Press the button [2] located on the receiver on

the bottom of the device to start up the appliance.
The light [1] should turn on.

• Light [1] modes:
- Off: Manual standby [ button] or off via the pilot

wire.

- Constant green light: device is on.
- Constant red light: device is heating.
- Flashing red light: device in Boost mode
[forced ‘on’].
- Flashing Green/Red light: no infrared wave [out of

order] or overheated [the room temperature
measured is higher than 35°C].

The infrared receiver has an autonomous regulation

system which memorises the status information [on/

standby] and temperature instructions. Storing the

last instruction received means that the temperature

can be regulated even if the emitter is off [batteries
have run out for example].

iMPORTaNT: if your receiver is off, your appliance will
not receive the orders from the infrared thermostat.
Your installation may freeze because the device
cannot regulate its temperature.

ThERMOSTaT iNSTaLLaTiON

Remove the battery protection strips.

• Install the room thermostat in the same room as

the appliance. The thermostat must be installed
around 1.5 metres from the ground, on an inside
wall, sheltered from water splashes, direct sunlight
and any direct thermal disturbance such as a lamp,
television, heating pipe, draft etc.

PLEaSE NOTE :
to ensure perfect infrared trans-mission :
• Do not obstruct the emitter or the receiver.
[with a towel for example]
• Avoid using lamps with a built-in electronic ballast

in the same room.

REGuLaTiNG ThE TEMPERaTuRE

To regulate the room temperature depending on the
desired temperature [regulation temperature]:

Turn the thermostat knob to the chosen tempera-
ture:
• The thermostat light [5] gives a long flash to

show that the regulation temperature has been
registered.

• The heated towel rack switches on [red light [1]]

as soon as the ambient temperature is lower than
the chosen temperature.

NOTE: any change in temperature regulation [7] or
cursor position [Confort

P1

P1+P2] is indicated

by a flash on the thermostat.

8

4

5

6

7
