La Crosse Technology WS-9245UITCA - Manuel

Outdoor Reception Signal icon
MIN/MAX Outdoor temperature
Indoor temperature
MAX indoor temperature MIN indoor temperature
MAX outdoor temperature
MIN outdoor
temperature
Outdoor temperature

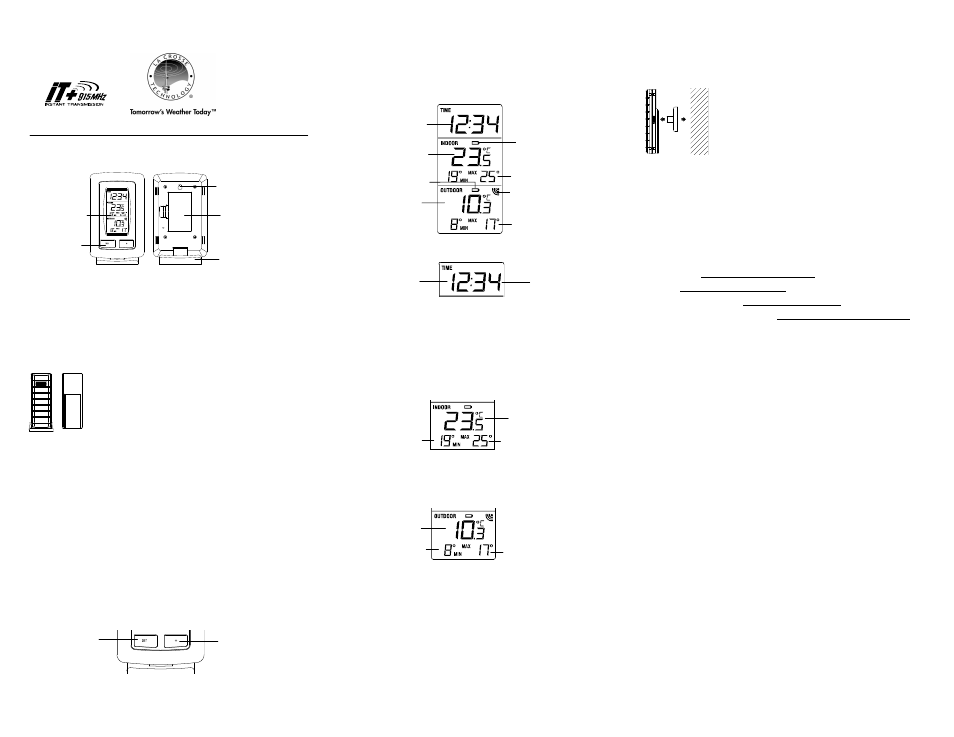

Wireless Temperature Station
Model WS9245UITCA
Quick Setup Guide
FEATURES
The Temperature Station
• Manual time set (hour and minute)
• 12-Hour Time Format
• Temperature Display in Celsius (°C)
• Indoor and Outdoor Temperature with MIN/MAX Records
• Low Battery Indicator
• Wireless Transmission at 915 MHz
• 8 Second Signal Reception Interval
• Wall Mount or Table Stand
The Outdoor Temperature Transmitter
• Wireless 915 MHz Outdoor Temperature Transmitter
• Rain-resistant Casing
• Wall Mounting or Table Stand
Note: Outdoor transmitter should not be placed in direct sunlight.
Direct sunlight will disrupt accurate temperature readings.
SETUP
Note: This temperature station can only receive one transmitter only.
1. First, insert batteries into the transmitter, observing the correct polarity (see marking
inside battery compartment).
2. Within 30 seconds of powering up the transmitter, insert batteries into the
Temperature Station, observing the correct polarity (see marking inside battery
compartment). Once the batteries are in place, all segments of the LCD will light up
briefly. Following the indoor temperature, the time as 12:00 will be displayed. If they
are not shown in the LCD after 60 seconds, remove the batteries and wait for at
least 60 seconds before reinserting them. Once the indoor data is displayed you
may proceed to the next step.
3. After the batteries are inserted, the Temperature Station will start receiving outdoor
temp data from the transmitter. The outdoor temperature should then be displayed
on the Temperature station. If this does not happen after 2 minutes, remove the
batteries from both units and start again from step 1.
4. In order to ensure sufficient 915 MHz transmission, the outdoor transmitter should
be placed a distance of no more than 60 meters (200 feet) from the Temperature
Station and the transmitter (see notes on “Positioning”).
FUNCTION KEYS
The Temperature Station has only two easy to use function keys:
SET key: Press and hold for about 3 seconds to enter the Manual setting mode.
+ key: Press to make adjustment in the setting mode. Press and hold to reset all
MIN/MAX records
LCD SCREEN AND SETTINGS
MANUAL TIME SET
To manually set the time of the Temperature Station:
1. Press and hold the SET key for 3 seconds to enter the manual time setting mode.
2. The hour digit of the time display will be flashing.
3. Press the + key to adjust the hour (press and hold to allow fast advance). Press
SET key to confirm and go to the minute setting.
4. The minute digit will be flashing. Press the + key to adjust the minute (press and
hold to allow fast advance). Press SET key once more to return to normal display.
Note: If no buttons are pressed within approximately 8 seconds while in setting mode, the
unit will return to normal operating mode.
VIEWING THE INDOOR TEMPERATURE AND MIN/MAX
The indoor temperature is displayed in the second section of the LCD along with the
indoor MIN/MAX records:
Notes:
•
The MIN/MAX temperature resolution is 1ºC
• The resolution of the indoor temperature is 0.5ºC
VIEWING THE OUTDOOR TEMPERATURE AND THE MIN/ MAX
The outdoor temperature is displayed in the last section of the LCD along with the outdoor
MIN/MAX records:
Notes:
•
The MIN/MAX temperature resolution is 1ºC
• The resolution of the outdoor temperature is 0.1ºC
TO RESET THE MIN/MAX DATA
The MIN/MAX temperature can be reset manually by pressing and holding the + key for
about 3 seconds. This will reset all indoor and outdoor MIN/MAX temperature to current
indoor and outdoor temperatures.
POSITIONING THE REMOTE TEMPERATURE TRANSMITTER
The remote temperature transmitter can be placed onto any flat surface or wall mounted
using the bracket which doubles as a stand or wall mount base.
To wall mount: Secure the bracket onto a desired wall using the
screws and plastic anchors.
Clip the remote temperature transmitter onto the bracket.
Note: The mounting surface can affect the transmission range.
If, for instance, the unit is attached to a piece of metal, it may
then either reduce or increase the transmitting range. For this
reason, we recommend not to place the unit on any metal
surfaces or in any position where a large metal or highly
polished surface is in the immediate vicinity (garage doors, double glazing, etc.). Before
securing in place, please ensure that the Temperature Station can receive the 915MHz
signal from the temperature transmitter at the positions that you wish to place them.
WARRANTY
For warranty work, technical support, or information contact:
La Crosse Technology, Ltd
2809 Losey Blvd. S.
La Crosse, WI 54601
Phone: 608.782.1610
Fax: 608.796.1020
Springfield / Lacrosse Canada
1-800-661-6721
5151 Thimens Rd.
Montreal, Quebec
H4R 2C8
[email protected] (warranty work)
[email protected] (information on other products)
web: www.lacrossetechnology.com
Question? Instructions? Please visit: www.lacrossetechnology.com/9245itc
FCC ID: OMO-TX40U (transmitter)
FCC DISCLAIMER
RF Exposure mobile:
The internal / external antennas used for this mobile transmitter must provide a separation
distance of at least 20 cm (8 inches) from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter."
Statement according to FCC part 15.19:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Statement according to FCC part 15.21:
Modifications not expressly approved by this company could void the user's authority to operate
the equipment.
Statement according to FCC part 15.105:
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This Category II radiocommunication device complies with Industry Canada Standard
RSS-310.
All rights reserved. This handbook must not be reproduced in any form, even in excerpts, or
duplicated or processed using electronic, mechanical or chemical procedures without written
permission of the publisher.
This handbook may contain mistakes and printing errors. The information in this handbook is
regularly checked and corrections made in the next issue. We accept no liability for technical
mistakes or printing errors, or their consequences.
All trademarks and patents are acknowledged.
+ key SET key
Time
Indoor Temperature in °C
Outdoor Temp in °C
MIN/MAX Indoor temperature
Low Battery
indicator (temp station)
Low Battery indicator (transmitter)
Minutes (flashing) Hour (flashing)
Stand
Hanging hole
Battery
compartment
LCD display
Function keys
EJMA9245L230# Printed in China
