Pioneer DEH-P90HDD - Manuel

DEH-P90HDD
Printed in Japan
Imprimé au Japon
<CRD3473-A> UC
This product conforms to CEMA cord colors.
Le code de couleur des câbles utilisé pour ce produit est
conforme à CEMA.
INST
ALLA
TION MANUAL
MANUEL D’INST
ALLA
TION
<KMMUF/01K00000>

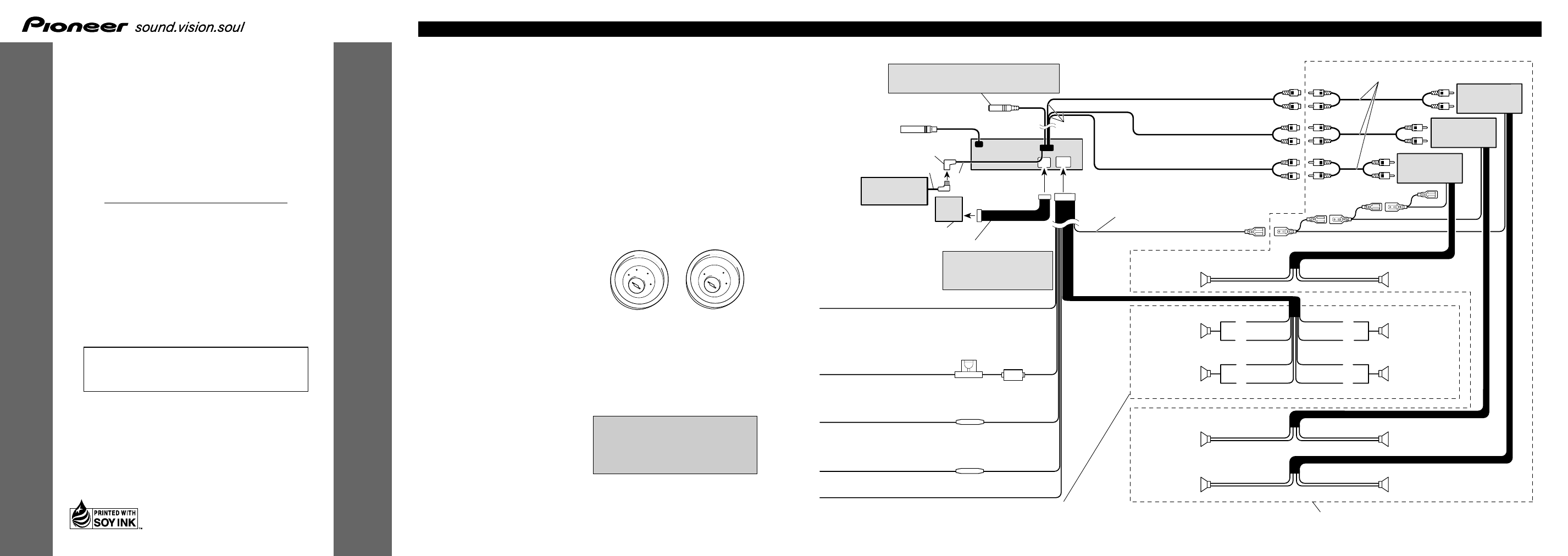

Fig. 2
Yellow/black
If you use a cellular telephone,
connect it via the Audio Mute lead
on the cellular telephone. If not,
keep the Audio Mute lead free of
any connections.
Yellow
To terminal always supplied with
power regardless of ignition switch
position.
Red
To electric terminal controlled by
ignition switch (12 V DC) ON/OFF.
Fuse holder
Fuse resistor
Fuse resistor Orange/white
To lighting switch terminal.
Black (ground)
To vehicle (metal) body.
Connecting cords with RCA pin
plugs (sold separately)
Power amp
(sold separately)
Blue/white
To system control terminal of the power amp or Auto-
antenna relay control terminal (max. 300 mA 12 V DC).
System remote control
Front speaker
White
White/black
Gray
Gray/black
Left Right
Rear speaker
Green
Green/black
Violet
Violet/black
Subwoofer
With a 2 speaker system, do not connect
anything to the speaker leads that are not
connected to speakers.
Perform these connections when using a
different amp (sold separately).
Antenna jack
15 cm
(5/8 inch)
This Product
Subwoofer output
(SUBWOOFER OUTPUT)
Rear output (REAR OUTPUT)
Front output (FRONT OUTPUT)
IP-BUS input (Blue)
Multi-CD player
(sold separately)
IP-BUS cable
Power box
Power box cord
1 m (3-7/8 inch)
Power amp
(sold separately)
Power amp
(sold separately)
Front speaker
Front speaker Front speaker
Rear speaker
Rear speaker Rear speaker
Subwoofer
1 m (3-7/8 inch)
15 cm (5/8 inch)
15 cm (5/8 inch)
+
≠
+
≠
+
≠
+
≠
+
≠
+
≠
+
≠
+
≠
+
≠
+
≠
Auto-equalizing mike jack
Pull the auto-equalizing mike jack out of the
console box, so that the mike can be plugged
in or pulled out even after this unit has been installed.
Install the power box cord
securely so that the cord can not
be easily pulled out.
Note:
• This unit is for vehicles with a 12-volt battery and
negative grounding. Before installing it in a recre-
ational vehicle, truck, or bus, check the battery
voltage.
• To avoid shorts in the electrical system, be sure to
disconnect the ≠ battery cable before beginning
installation.
• Refer to the owner’s manual for details on con-
necting the power amp and other units, then make
connections correctly.
• Secure the wiring with cable clamps or adhesive
tape. To protect the wiring, wrap adhesive tape
around them where they lie against metal parts.
• Route and secure all wiring so it cannot touch any
moving parts, such as the gear shift, handbrake,
and seat rails. Do not route wiring in places that
get hot, such as near the heater outlet. If the insula-
tion of the wiring melts or gets torn, there is a dan-
ger of the wiring short-circuiting to the vehicle
body.
• Don’t pass the yellow lead through a hole into the
engine compartment to connect to the battery. This
will damage the lead insulation and cause a very
dangerous short.
• Do not shorten any leads. If you do, the protection
circuit may fail to work when it should.
• Never feed power to other equipment by cutting
the insulation of the power supply lead of the unit
and tapping into the lead. The current capacity of
the lead will be exceeded, causing overheating.
• When replacing fuse, be sure to use only fuse of
the rating prescribed on the fuse holder.
• Since a unique BPTL circuit is employed, never
wire so the speaker leads are directly grounded or
the left and right ≠ speaker leads are common.
• If the RCA pin jack on the unit will not be used, do
not remove the caps attached to the end of the con-
nector.
• Speakers connected to this unit must be high-
power types with minimum rating of 50 W and
impedance of 4 to 8 ohms. Connecting speakers
with output and/or impedance values other than
those noted here may result in the speakers catch-
ing fire, emitting smoke, or becoming damaged.
• When this product’s source is switched ON, a con-
trol signal is output through the blue/white lead.
Connect to an external power amp’s system remote
control or the car’s Auto-antenna relay control ter-
minal (max. 300 mA 12 V DC). If the car features
a glass antenna, connect to the antenna booster
power supply terminal.
• When an external power amp is being used with
this system, be sure not to connect the blue/white
lead to the amp’s power terminal. Likewise, do not
connect the blue/white lead to the power terminal
of the auto-antenna. Such connection could cause
excessive current drain and malfunction.
• To avoid short-circuiting, cover the disconnected
lead with insulating tape. Especially, insulate the
unused speaker leads without fail. There is a possi-
bility of short-circuiting if the leads are not insulat-
ed.
• To prevent incorrect connection, the input side of
the IP-BUS connector is blue, and the output side
is black. Connect the connectors of the same colors
correctly.
• If this unit is installed in a vehicle that does not
have an ACC (accessory) position on the ignition
switch, the red lead of the unit should be connected
to a terminal coupled with ignition switch ON/OFF
operations. If this is not done, the vehicle battery
may be drained when you are away from the vehi-
cle for several hours. (Fig. 1)
Fig. 1
• The black lead is ground. Please ground this lead
separately from the ground of high-current prod-
ucts such as power amps.
If you ground the products together and the ground
becomes detached, there is a risk of damage to the
products or fire.
No ACC position ACC position
ON
S
T
A
R
T
O
FF
ACC ON
S
T
A
R
T
O
FF
DEH-P90HDD
Printed in Japan
Imprimé au Japon
<CRD3473-A> UC
Connecting the Units <ENGLISH>
This product conforms to CEMA cord colors.
Le code de couleur des câbles utilisé pour ce produit est
conforme à CEMA.
• Cords for this product and those for other prod-
ucts may be different colors even if they have the
same function. When connecting this product to
another product, refer to the supplied Installation
manuals of both products and connect cords that
have the same function.
INST
ALLA
TION MANUAL
MANUEL D’INST
ALLA
TION
<KMMUF/01K00000>
