ELECTRIC COOKTOP INSTALLATION INSTRUCTIONS
A
H
B
C
F
G
30” Min. *
(76.2 cm)
D E

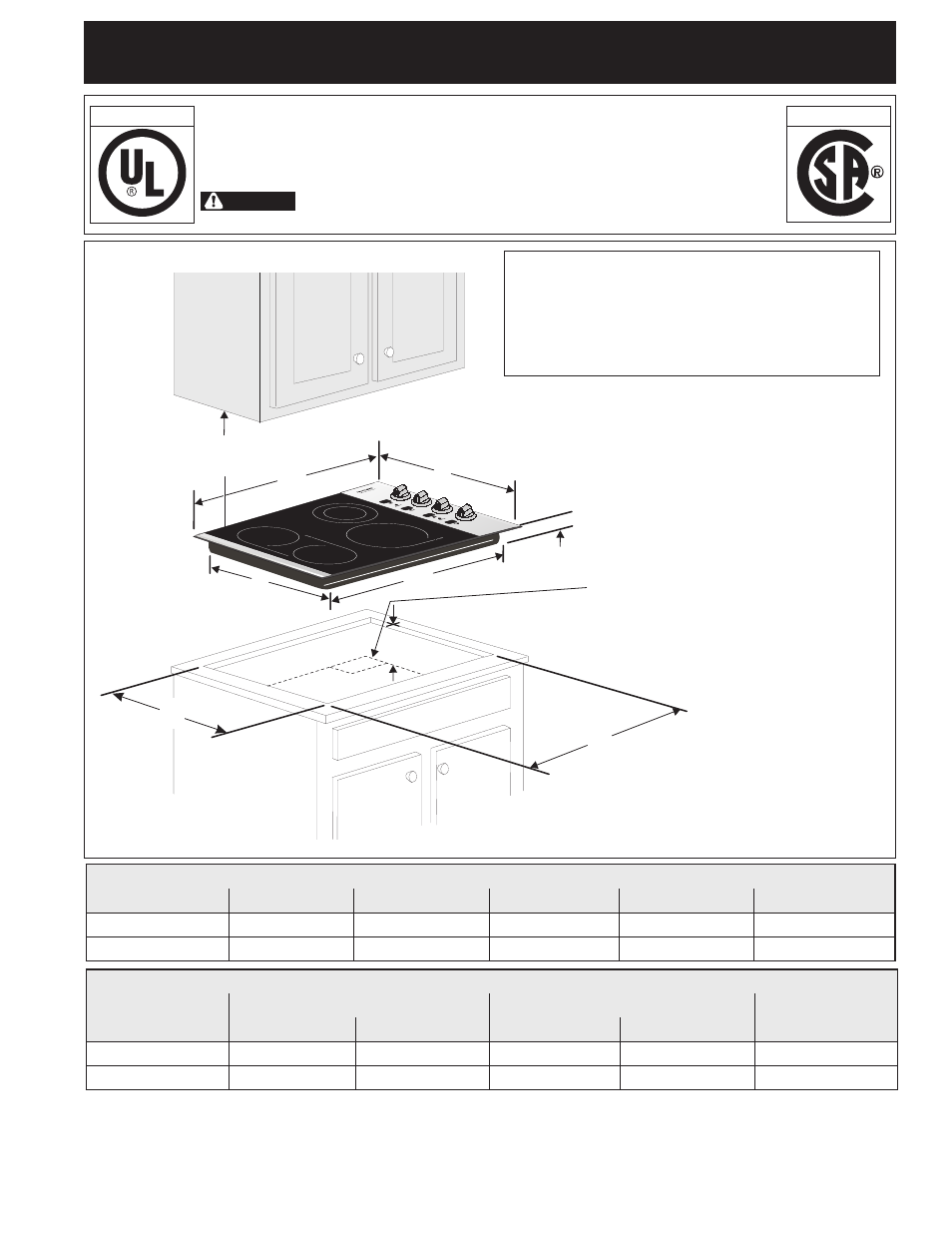

Cooktop Dimensions
IMPORTANT INSTALLATION‑INFORMATION
• All electric cooktops run off a single phase, three-wire
or four-wire cable, 240/208 volt, 60 hertz, AC only
electrical supply with ground.
• Please note minimum distances between cooktop and
adjacent and overhead cabinetry is 30" (76.2 cm).
* 30" (76.2 cm) min. for unprotected cabinet
24" (61 cm) min. for protected surface
Cooktop Cutout Dimensions
Figure 1 ‑ 30" Model shown only
All dimensions are in inches (cm).
** Allow 2" (5 cm) space below cooktop to clear the electric cable and allow for
installation of the junction box on the wall at the back of the cooktop. P/N 318205408 (0911) Rev. B
Printed in United States
4" X 8" (10.2 cm x 20.3 cm)
opening at the right rear
to route armored cable
if a panel is present
INSTALLATION AND SERVICE MUST BE PERFORMED BY A
QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of this or any other appliance.
WARNING
Canada U.S.A.
* 30" (76.2 cm) min. for unprotected cabinet
24" (61 cm) min. for protected surface
PRODUCT DIMENSIONS
MODEL A. WIDTH B. DePth C. HEIGHT D. BOX WIDth E. BOX DePth
30’’ Ceramic Model 30 ¾ (78.1) 21 ½ (54.6) 5 (12.7) 29 (73.7) 19 ½ (49.5)
36’’ Ceramic Model 36 ½ (92.7) 21 ½ (54.6) 5 (12.7) 34 5 /
8
(87.9) 19½ (49.5)
CUT OUT DIMENSIONS
F. WIDTH G. DePth H. heIght BeLOW
MODEL MINIMUM MAXIMUM MINIMUM MAXIMUM COOKtOP
30’’ Ceramic Model 29 ¾ (75.6) 30 1 /
8
(76.5) 20 3 /
8
(51.7) 20 ¾ (52.7) 6 (15.2)
36’’ Ceramic Model 35 ½ (90.2) 35 7 /
8
(91.1) 20 3 /
8
(51.7) 20 ¾ (52.7) 6 (15.2)
